Meters
Show all questions
<=
=>
What is the meter shown?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)

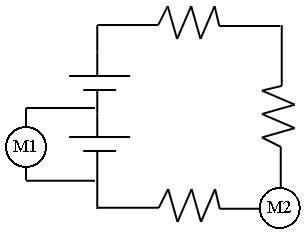

What is meter 1?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 2?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 3?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)

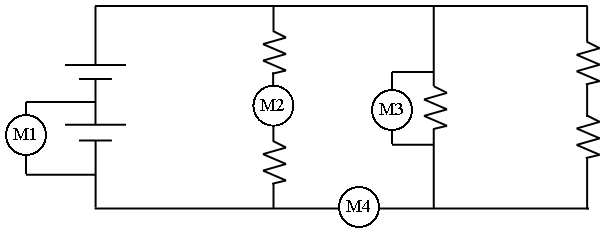

What is meter 1?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 2?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 3?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 4?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)

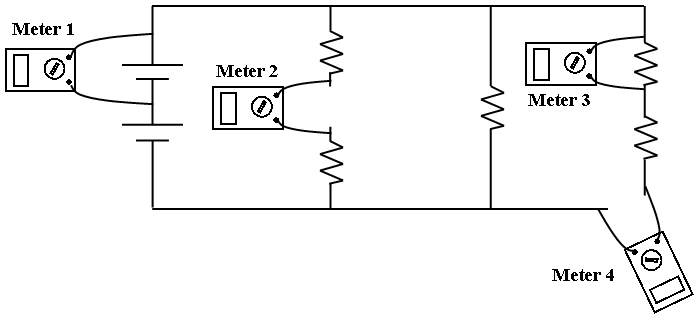

What is meter 1?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 2?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 3?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 4?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)

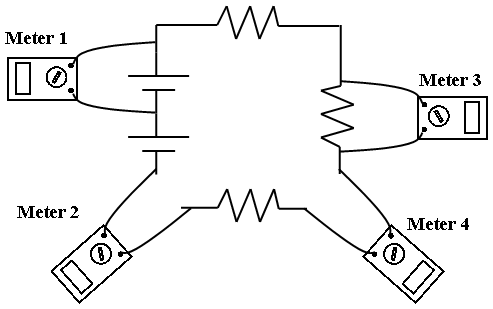

What is meter 1?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 2?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
What is meter 1?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
Which one is very delicate and can be damaged?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
Which meter is put in parallel with a device when the current is flowing?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
Which one is placed in series with a device?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
Which meter has very low resistance?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)
Which meter tells the difference in value between two points?
?
Ohmmeter (O)
?
Ammeter (A)
?
Voltmeter (V)

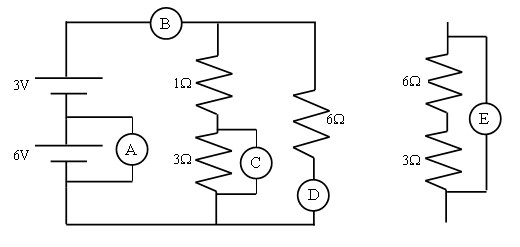

Which meter is an ohmmeter?
?
Meter A
?
Meter B
?
Meter C
?
Meter D
?
Meter E
Which meter reads the total current of the circuit?
?
Meter A
?
Meter B
?
Meter C
?
Meter D
?
Meter E
Which meter reads the current flowing thru the batteries?
?
Meter A
?
Meter B
?
Meter C
?
Meter D
?
Meter E
Which meter reads the current flowing thru the 6 ohm resistor?
?
Meter A
?
Meter B
?
Meter C
?
Meter D
?
Meter E
Which meter reads a voltage drop?
?
Meter A
?
Meter B
?
Meter C
?
Meter D
?
Meter E
