Projectile Motion Comparisons

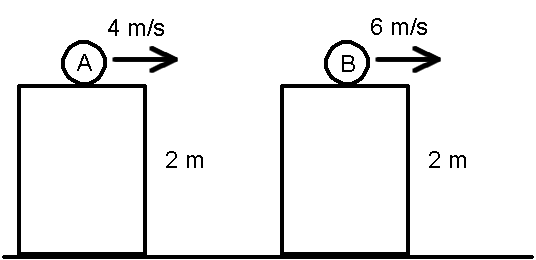

Which one hits the ground first?
1. A
2. B
3. Same
Which one is in the air for more time?
1. A
2. B
3. Same
Which one has the greater vertical displacement?
1. A
2. B
3. Same

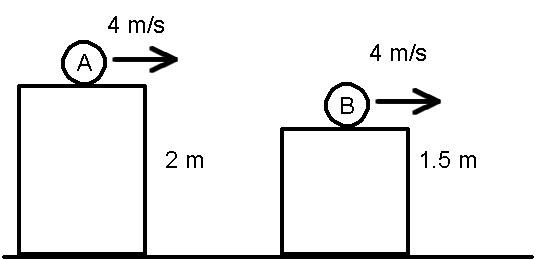

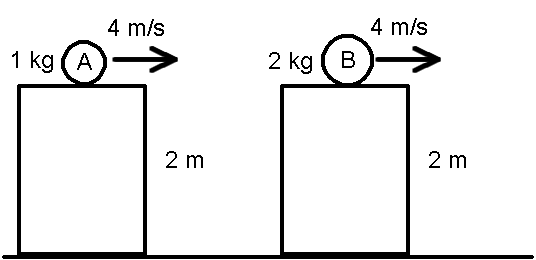

Which one hits the ground first?
1. A
2. B
3. Same
Which one has the greatest acceleration when it leaves the table?
1. A
2. B
3. Same
Which one has the greatest range?
1. A
2. B
3. Same

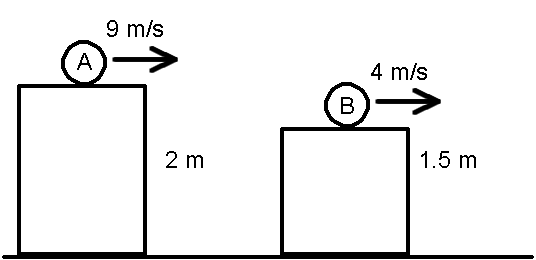

Which one hits the ground first?
1. A
2. B
3. Same
Which one has the greatest range?
1. A
2. B
3. Same
Which one hits the ground first?
1. A
2. B
3. Same
Which one has the greatest range?
1. A
2. B
3. Same

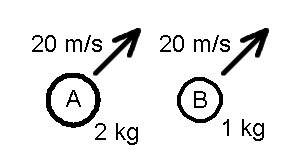

Which one has the greatest vertical acceleration at the top of its path?
1. A
2. B
3. Same

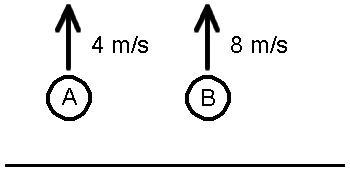

Which one has the greater maximum height?
1. A
2. B
3. Same
Which one has the greater maximum height?
1. A
2. B
3. Same
Which one has the greater range?
1. A
2. B
3. Same
Which one has the greater velocity at the top of it’s path?
1. A
2. B
3. Same
Which one has the smaller maximum height?
1. A
2. B
3. Same
Which one has the greater range?
1. A
2. B
3. Same
Which has the greater maximum height?
1. A
2. B
3. Same
Which has the greater speed at the top of its path?
1. A
2. B
3. Same
Which has the greater maximum height?
1. A
2. B
3. Same
Which has the greater acceleration?
1. A
2. B
3. Same
Which has the greater maximum height?
1. A
2. B
3. Same
Which has the smaller range?
1. A
2. B
3. Same
Which has the greater horizontal acceleration?
1. A
2. B
3. Same
Which has the greater range?
1. A
2. B
3. Same
Which has the smallest maximum height?
1. A
2. B
3. Same
Which has the greater horizontal velocity?
1. A
2. B
3. Same
Which has the greater vertical acceleration?
1. A
2. B
3. Same
Which one has the greater range?
1. A
2. B
3. Same

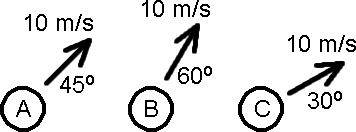

Which reaches the greatest maximum height?
1. A
2. B
3. C
4. Same
Which has the greater range?
1. A
2. B
3. C
4. Same
Which is in the air for the least amount of time?
1. A
2. B
3. C
4. Same
Which has the smallest Vx?
1. A
2. B
3. C
4. Same
Which has the greatest Vy?
1. A
2. B
3. C
4. Same
Which has the greatest vertical acceleration?
1. A
2. B
3. C
4. Same
Which one has the greatest magnitude of speed?
1. A
2. B
3. Same

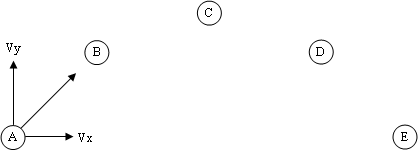

The points above show a projectile being shot from ground to ground.

At which point is the vertical acceleration the greatest?
1. A
2. B
3. C
4. D
5. E
6. same
The points above show a projectile being shot from ground to ground.

At which point is the horizontal acceleration the greatest?
1. A
2. B
3. C
4. D
5. E
6. same
The points above show a projectile being shot from ground to ground.

Between only points A, B, or C, at which point is the magnitude of its speed greatest?
1. A
2. B
3. C
4. same
The points above show a projectile being shot from ground to ground.

Between only points A, B, or C, at which point is the magnitude of its horizontal speed greatest?
1. A
2. B
3. C
4. same
The points above show a projectile being shot from ground to ground.

Between only points B, C, or E, at which point is the magnitude of its vertical speed greatest?
1. B
2. C
3. E
4. same
