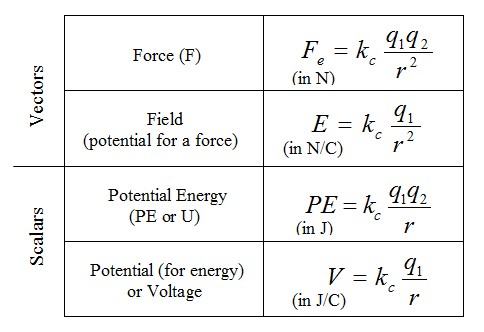

Electrostatic Equations 1

When finding the electric field at P due to the 8μC charge, what is q₁?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric force on the 2μC charge (at P) due to the 8μC charge, what is q₂?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric field at P due to the –5μC charge, what is q₁?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric force on the 2μC charge (at P) due to the –5μC charge, what is q₂?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric potential energy at P due to the 6μC charge, what is q₁?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric potential energy on the 2μC charge (at P) due to the 6μC charge, what is q₂?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric field at P due to the 8μC charge, what is r?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric force on the 2μC charge (at P) due to the 6μC charge, what is r?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric field on the 8μC charge due to the 6μC charge, what is q₁?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
When finding the electric field on the 6μC charge due to the –5μC charge, what is q₁?
1. 2µC
2. −5µC
3. 6µC
4. 8µC
5. 3mm
6. 3.5mm
7. 4mm
What is the direction of the electric field at P due to the 8μC charge?
What is the direction of the electric field at P due to the –5μC charge?
What is the direction of the electric field at P due to the 6μC charge?
What is the direction of the net electric field at P?
What direction would the 2μC charge move if released?
What direction would a negative charge move if put at P?
