Basic IPC Worksheet: Thermodynamics

NOTE: If you can't see the images (too small), move your cursor off the page, then back. An icon will show up at the bottom of the page that allows you to expand the pictures. OR you can save it to your desktop and open it in a graphics program (like Microsoft Picture and Fax Viewer).

Study Helps Available here

Thermal Equilibrium:

Notes: How To Set Up Thermal Equilibrium Questions; Another Explanation and Example of Thermal Equilibrium

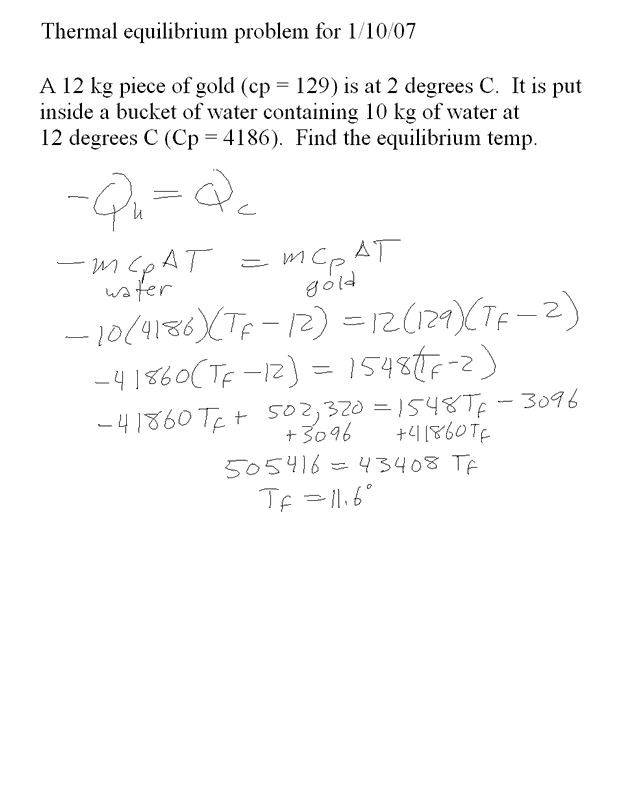

Thermal Equilibrium Example 2

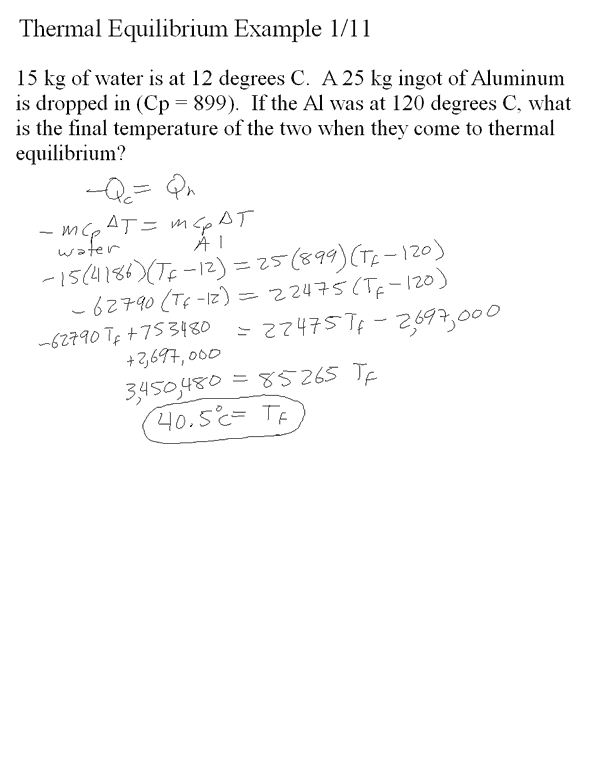

Thermal Equilibrium Example 3

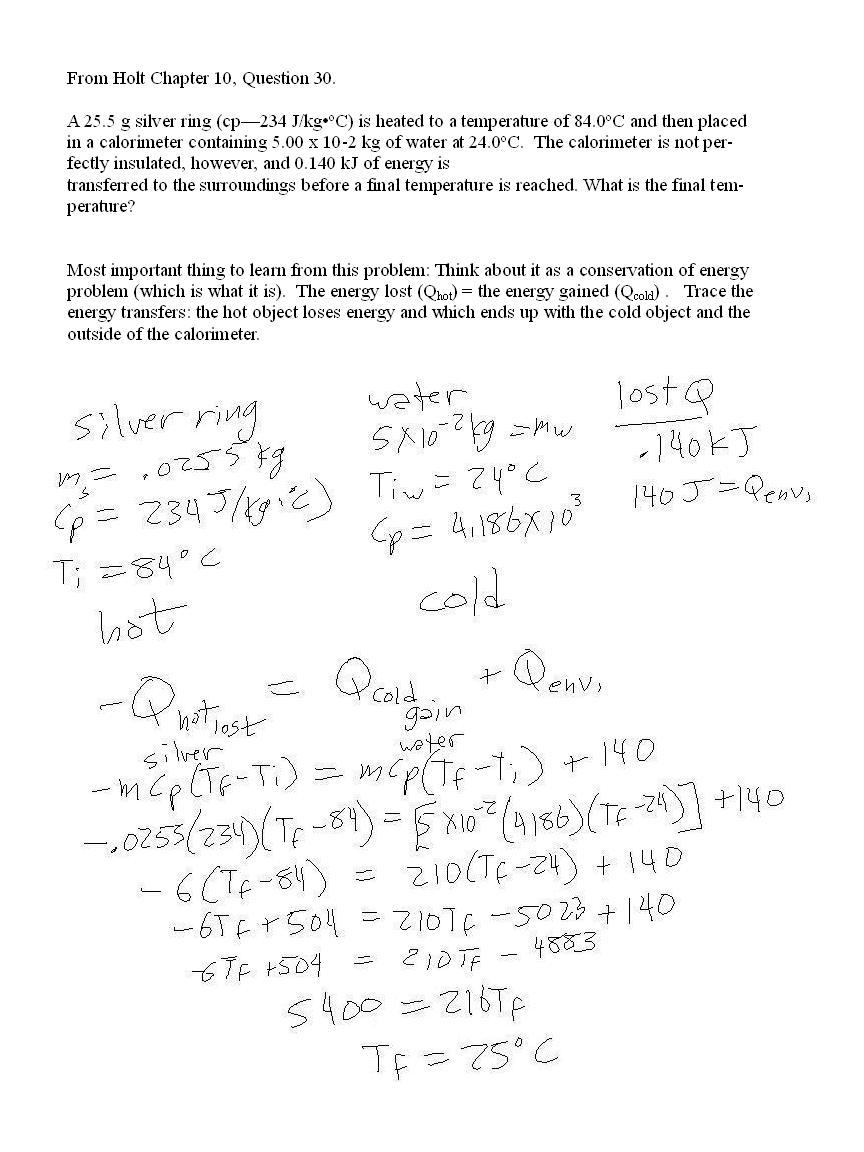

Thermal Equilibrium Example (from the Holt book) - includes energy being lost to the surroundings.

Heat and the Heat Equations

Understanding Heat 1- includes heat of fusion and vaporization

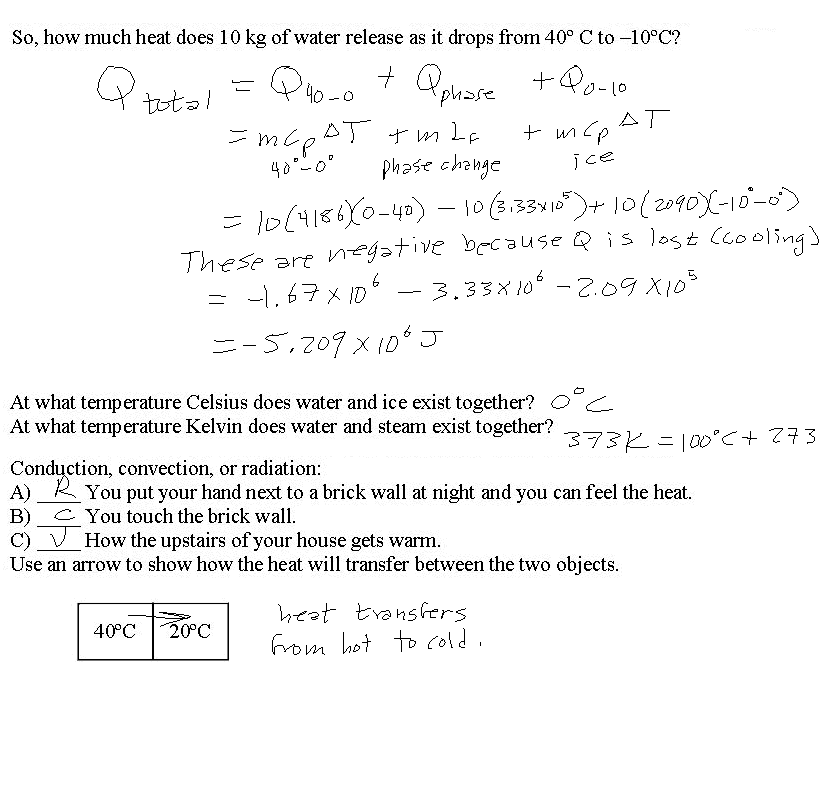

Understanding Heat 2 - includes little Conduction, Convection, and Radiation (very little).

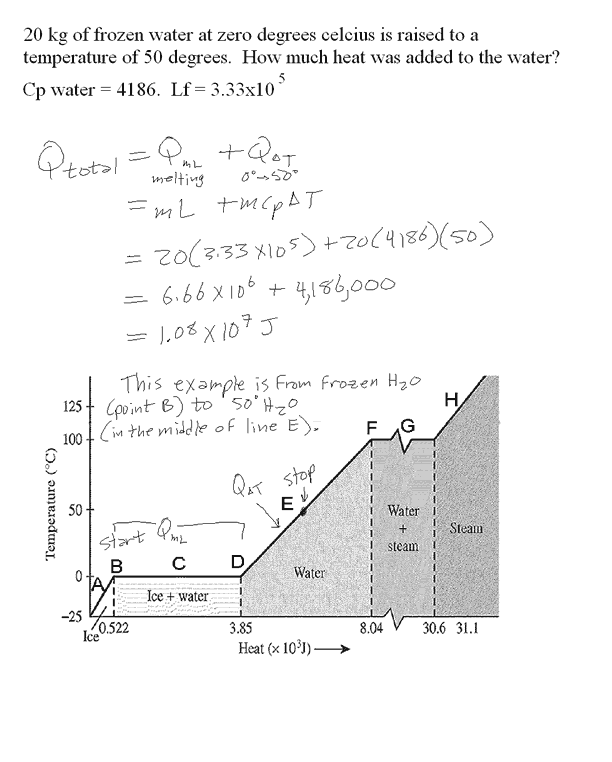

Example of Total Heat for Phase Change and Temperature Change

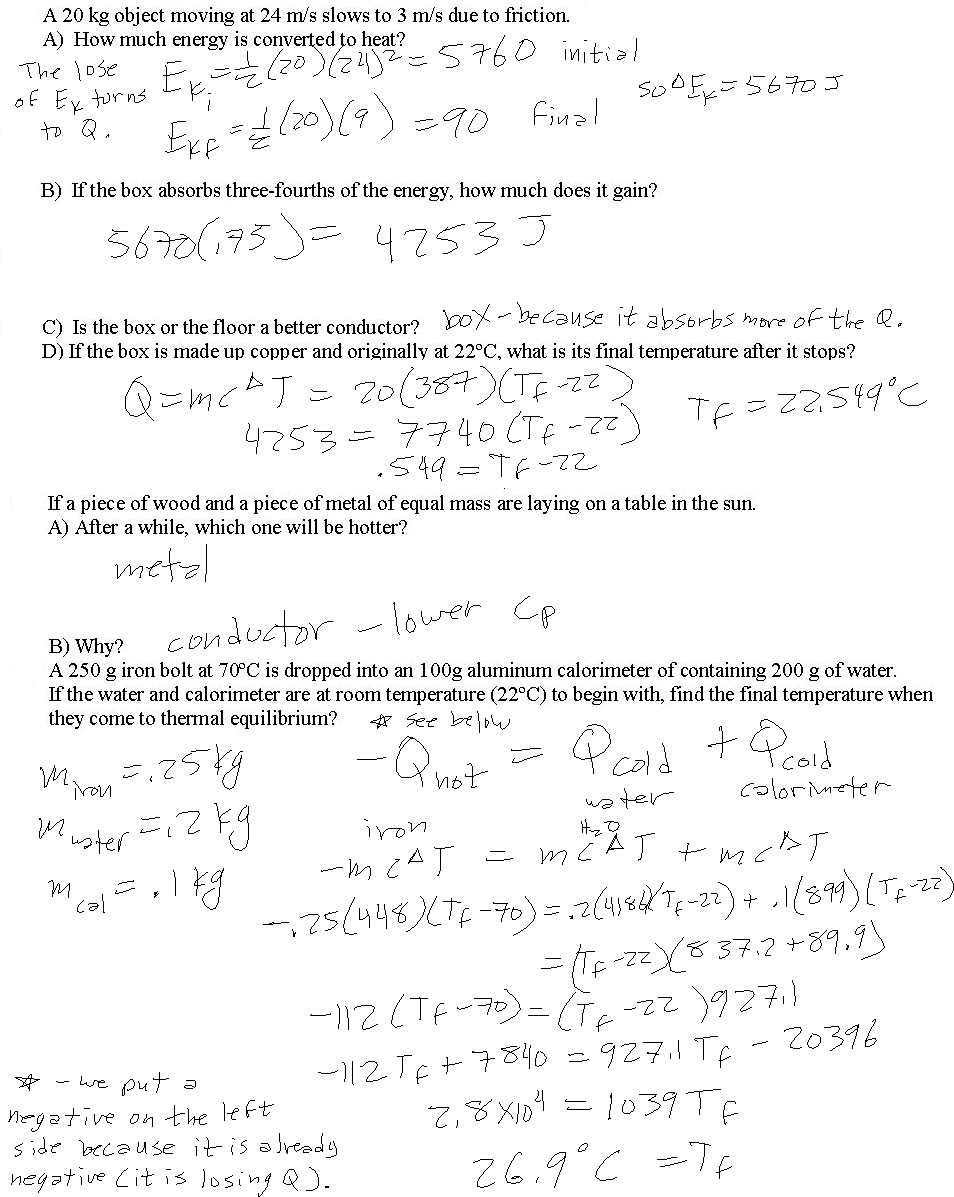

Heat Transfers - From friction and a calorimeter problem (Advanced)

Thermodynamics and Entropy

Notes on Thermodynamic Processes; Work; Laws of Thermodynamics

Short Lecture on How the 2nd Law of Thermodynamics (Entropy) relates to the Energy Pyramid
